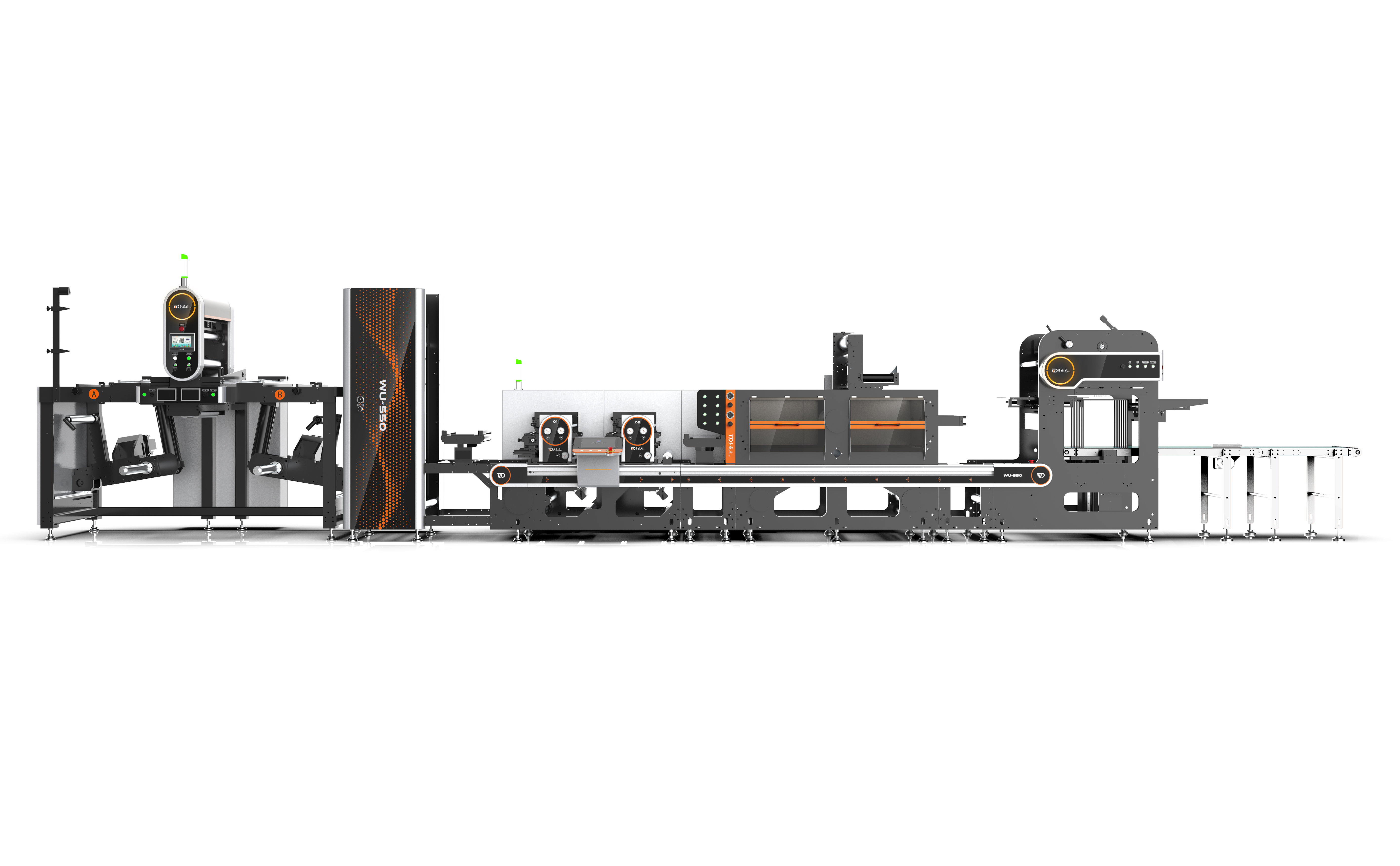

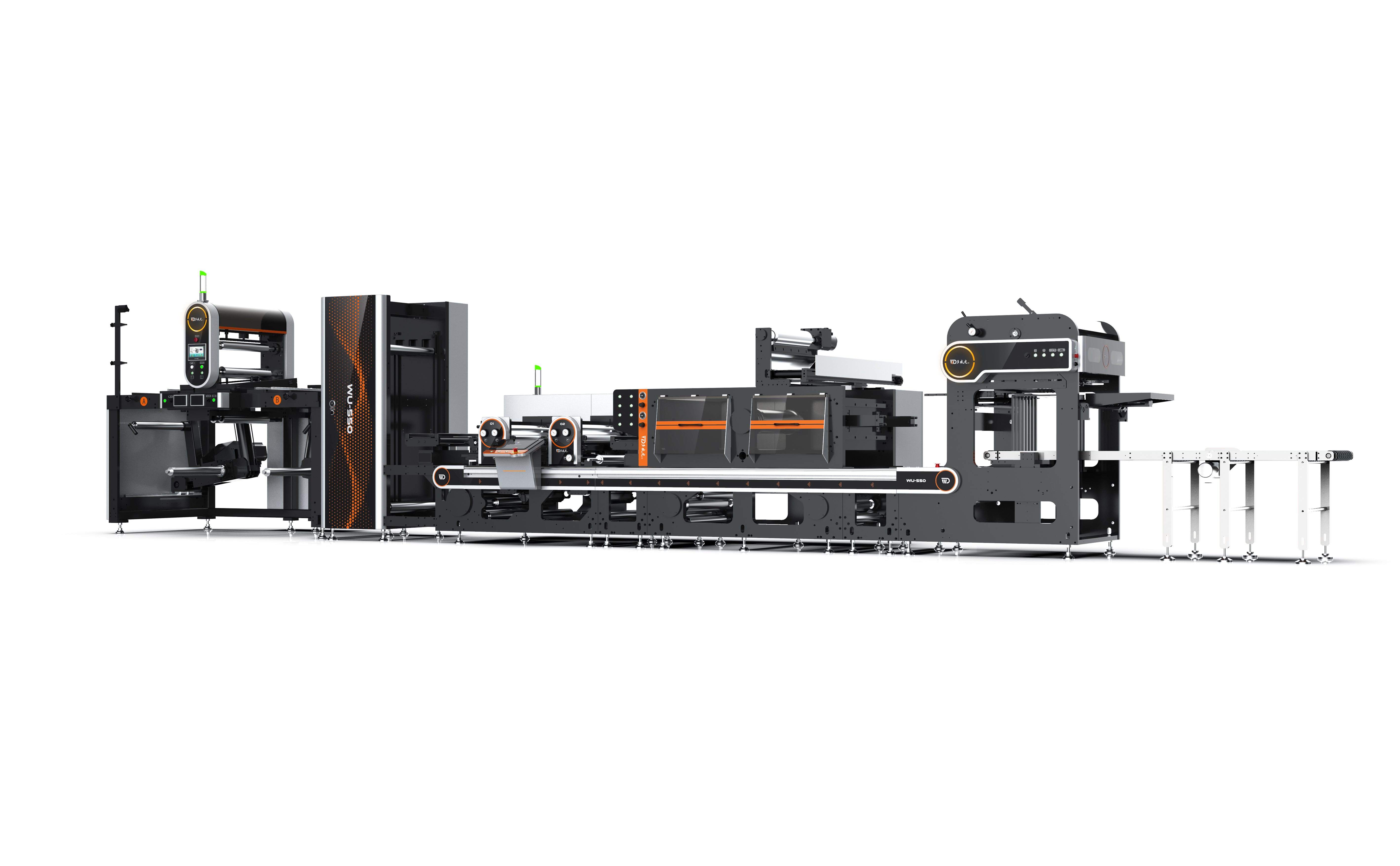

This series of printing machines is specifically designed for the production of logistics labels. They can print labels on both the front and back sides, and are equipped with high-efficiency die-cutting units to meet the high-quality and high-speed requirements of die-cutting for labels. The unwinder of the machine can be equipped with a standard 1-meter roll diameter non-stop unwinder, or a 1.5-meter large roll diameter non-stop unwinder to meet the needs of customers with different material specifications. The waster removal unit installed after the die-cutting unit to remove die-cutting waste without stopping the machine. The collection of finished products can be equipped with large roll non-stop rewinder, automatic cutting and folding unit, conveyor, and automatic strip rewinder, fully meeting the collection needs of logistics label production for different finished products. The entire equipment can achieve continuous production without stopping, ensuring the efficiency and continuity of logistics label production.


Specification

TypeLF-550
Max. machine speed  200 m/min
Max. print width  550 mm
Max. web width  560 mm
Printing repeat length  222-620 mm
Printing material  35-350 gsm
Folding repeat length  130-355.6 mm
Unwind diameter (Standard)  1000 mm
Unwind diameter (Large diameter)  1500 mm
Rewind diameter  1000 mm
